Magnetic Gun Mounts Explained: How They Work, Holding Strength and Where to Install Them
Share
A magnetic gun mount is a wall- or surface-mounted plate with an embedded magnet that holds a handgun by its slide or frame. The magnet grips the steel in the pistol, the plate screws to a solid surface, and the handgun can be placed or lifted with one hand in a single motion. Holding strength varies by product; the Magnetic Mount With Safety Trigger from US SAVAGE, for example, is rated to hold up to 15 lb. A magnetic gun mount is a quick-access tool for adults-only spaces, not a lock, and it works best alongside locked storage rather than instead of it.
What a magnetic gun mount is
Strip away the marketing and a magnetic gun mount is three parts: a magnet, a housing that holds the magnet and spreads the load into the mounting surface, and a soft coating between the magnet and the firearm. Screws pass through the housing into wood, metal or a wall anchor. Once installed, the plate becomes a fixed point where the handgun lives when it is not on your belt.
The appeal is simple. A drawer requires opening and a lock box requires a code or key. A mount holds the pistol in a known orientation at a known height, and retrieving it is one movement.
How neodymium magnets hold a handgun
Most quality mounts use neodymium magnets, the strongest class of permanent magnets commercially available. Neodymium magnets are commonly graded on a scale from N35 to N52, with higher numbers indicating stronger material. US SAVAGE does not publish a grade for its mounts; the useful number for a buyer is the rated hold of the finished product.
The magnet does not care about the shape of the gun. It cares about how much steel sits flat against the plate. On a typical modern pistol, the slide is steel and offers the largest flat area, so the slide side is usually what contacts the mount. On pistols with steel frames, the frame side also works. A polymer frame contributes nothing to the hold.
Two forces matter. The first is straight pull, lifting the gun directly away from the plate, the direction most ratings describe. The second is shear, the gun sliding along the plate under its own weight or after a bump. A rubber coating helps here by adding friction, and orientation matters too: a pistol lying horizontally asks less of the magnet than one hanging grip-down.
What "flat top handgun" compatibility means

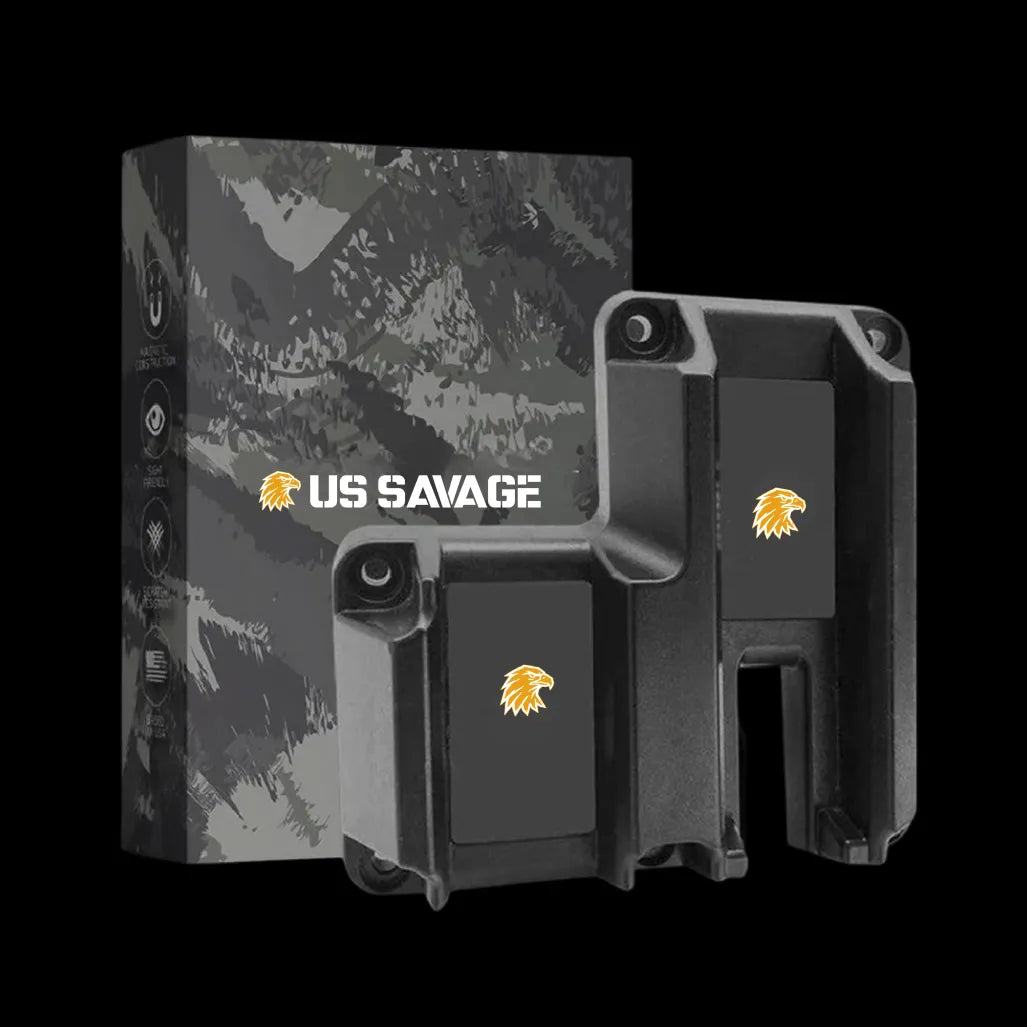

Product listings for the Magnetic Mount PRO and the Quick Load Slim Camo Edition say they hold most flat top handguns. In practice that phrase describes a pistol with a broad, flat slide surface that can sit flush against the plate. Most striker-fired and hammer-fired service pistols fit that description.
Handguns with heavy contouring or rounded profiles, such as many small revolvers, present less flat steel and hold with less margin. They may still mount, but test the hold by hand before trusting it and expect less resistance to bumps. Optics and lights usually do not affect the hold as long as they do not lift the slide away from the plate.
Holding strength and the 15 lb rating
Ratings on magnetic mounts typically describe the approximate straight-pull force needed to separate a flat steel surface from the magnet. They are a comparison tool, not a promise, because your pistol is not a flat steel test plate.
The Magnetic Mount With Safety Trigger is rated to hold up to 15 lb using neodymium magnets. A loaded handgun weighs well below that figure, so the margin is what absorbs vibration in a vehicle, a knock against the plate, or the gun being placed slightly off-center. The same 15 lb hold is available as a single unit in the Safety Trigger One and as a pair in the X2 bundle.
The Magnetic Mount PRO is described by US SAVAGE as the strongest hold in the line, but the store does not publish a pound figure for it, so this article will not either. If you need a stated number to compare against another product, the Safety Trigger models are the ones that have one.
Margin matters more than the raw number. A mount that barely holds a pistol in a quiet bedroom will drop it on the first pothole.
Rubber coating and finish protection
A bare magnet against a slide will scratch the finish over time. Both the Magnetic Mount PRO and the Safety Trigger models use a rubber-coated contact surface. The coating protects the finish of the firearm, adds friction against shear so the gun is less likely to slide when bumped, and softens the click of steel meeting magnet, which is a small but real benefit in a quiet house at night.
The coating does not keep moisture off the pistol. In a vehicle that swings between hot and humid, wipe the slide down periodically.
Installation surfaces and placement
A magnetic mount is only as solid as what it is screwed into. The Magnetic Mount PRO ships with one mount, four long screws and four short screws so the same unit can go into thick wood or thinner panels. Use the long screws into a stud, a solid desk frame or a wooden bed frame, the short screws where the material is thin, and an anchor if you are going into drywall. Test the installation by pulling on the mount, not just the gun.
US SAVAGE lists the PRO for car, truck, office, bedside, desk and doorway use. Each placement has its own logic:
- Bedside. Mount on the bed frame or the side of a nightstand at a height where you can reach the grip without looking. Orient the pistol so the muzzle points somewhere safe as it comes off the plate. This is an adults-only-room solution.
- Desk. Under the desktop, on the side away from the door, so the gun is out of view from anyone standing in front of the desk. Check that your knees do not contact the grip.
- Vehicle. Under the dash, on the side of the center console or under the seat lip, where it does not interfere with the pedals, airbags or seatbelt. The vehicle storage article covers mounts versus lock boxes in a car and the legal questions involved.
- Doorway. Inside a closet or behind a door frame at chest height, a spot that adults know about and children cannot reach or see.
Wherever you place it, apply the four rules of firearm safety to the mount itself: treat the pistol as loaded, never let the muzzle sweep anything you are not willing to destroy on the way on or off the plate, and keep your finger off the trigger through the entire motion. A mount with an integrated guard makes the last point easier, as covered in the trigger guard protection article.
Limitations you should not ignore
A magnetic mount is not a lock. Anyone who can reach the mount can take the gun, whether that is a curious child, a visitor or a thief in a parked car. It provides speed and consistency, not security.
In a home with children, locked storage is the primary layer, every time. A magnetic mount belongs only in a space children cannot enter, or in combination with locked storage, such as inside a locked closet or inside a safe as an organizer. Never treat an unlocked mount as sufficient with children present. NSSF Project ChildSafe is a good starting point for storage education, and the fatherhood and readiness article covers how storage should change as children grow.
Other honest limitations: magnets pick up grit that can scratch a slide if you do not wipe the plate occasionally, and a mount does nothing for a rifle, which needs a dedicated AR wall mount or a safe. The full range of magnetic options is in the magnetic gun mounts collection.
Quick answer
What is a magnetic gun mount? A plate with an embedded magnet that screws to a surface and holds a handgun by its steel slide or frame, so the pistol can be placed and retrieved with one hand.
How strong does a magnetic gun mount need to be? Strong enough to hold your loaded handgun with margin for bumps and vibration. The Magnetic Mount With Safety Trigger is rated to hold up to 15 lb; the Magnetic Mount PRO is described as the strongest in the line without a published figure.
Where should I install a magnetic gun mount? Into solid material at bedside, under a desk, in a vehicle or inside a doorway, always in an adults-only space, with the muzzle pointed somewhere safe as the gun comes off.
Is a magnetic mount safe with children in the home? Not on its own. Locked storage is the primary layer; a mount is for adults-only spaces or used in combination with a locked container.
Firearm storage and carry laws vary by state, county and municipality. Nothing in this article is legal advice. Verify current local regulations before carrying or storing a firearm, and always follow the four rules of firearm safety.
